EUROLITE DMX LED Operator 4

EUROLITE DMX LED Operator 4
Zoom image

100,00 EUR

19 % VAT incl. excl. Shipping costs

Product no.: 70064504
Sufficient stock for approx: 12 week(s)

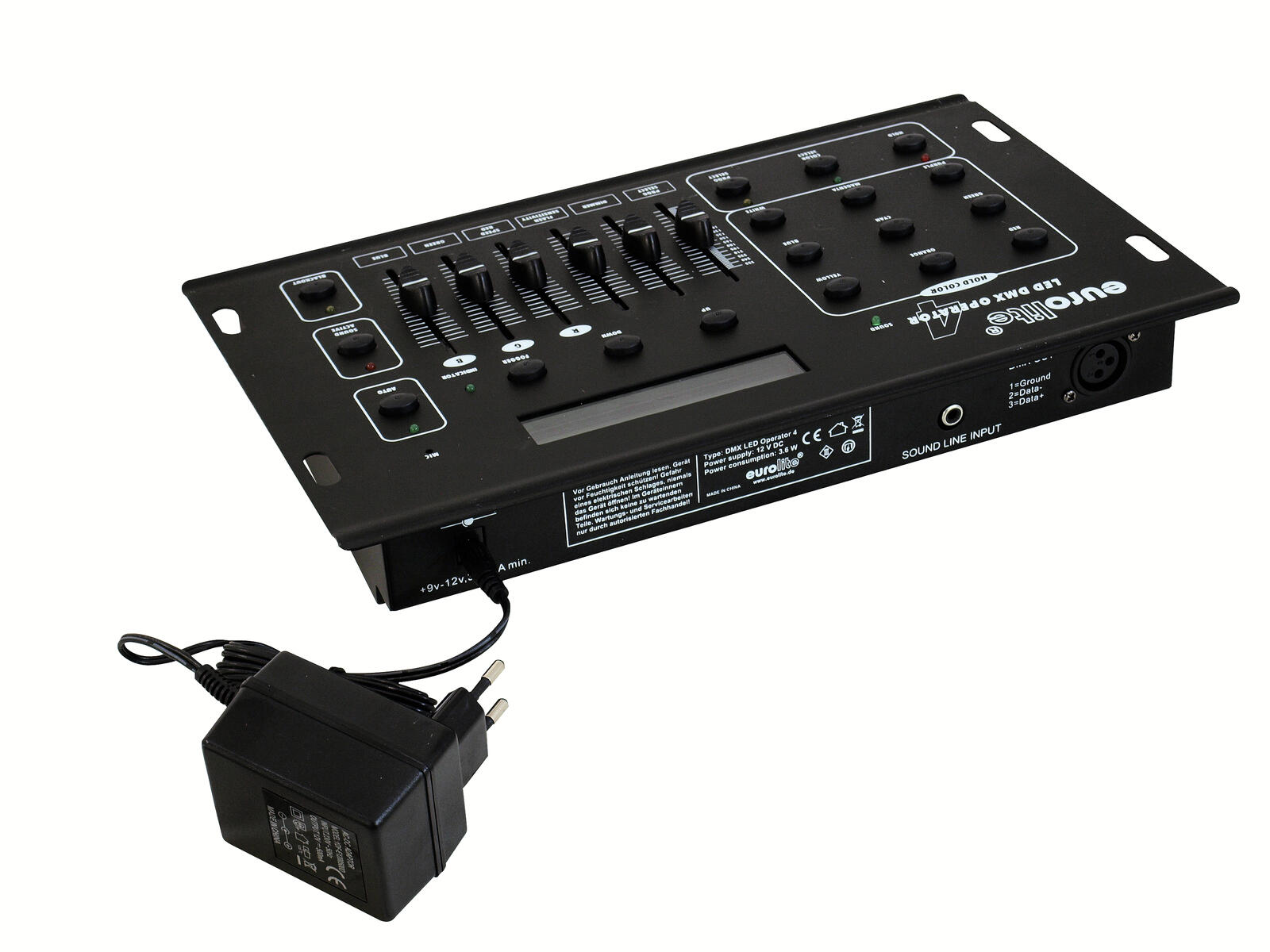

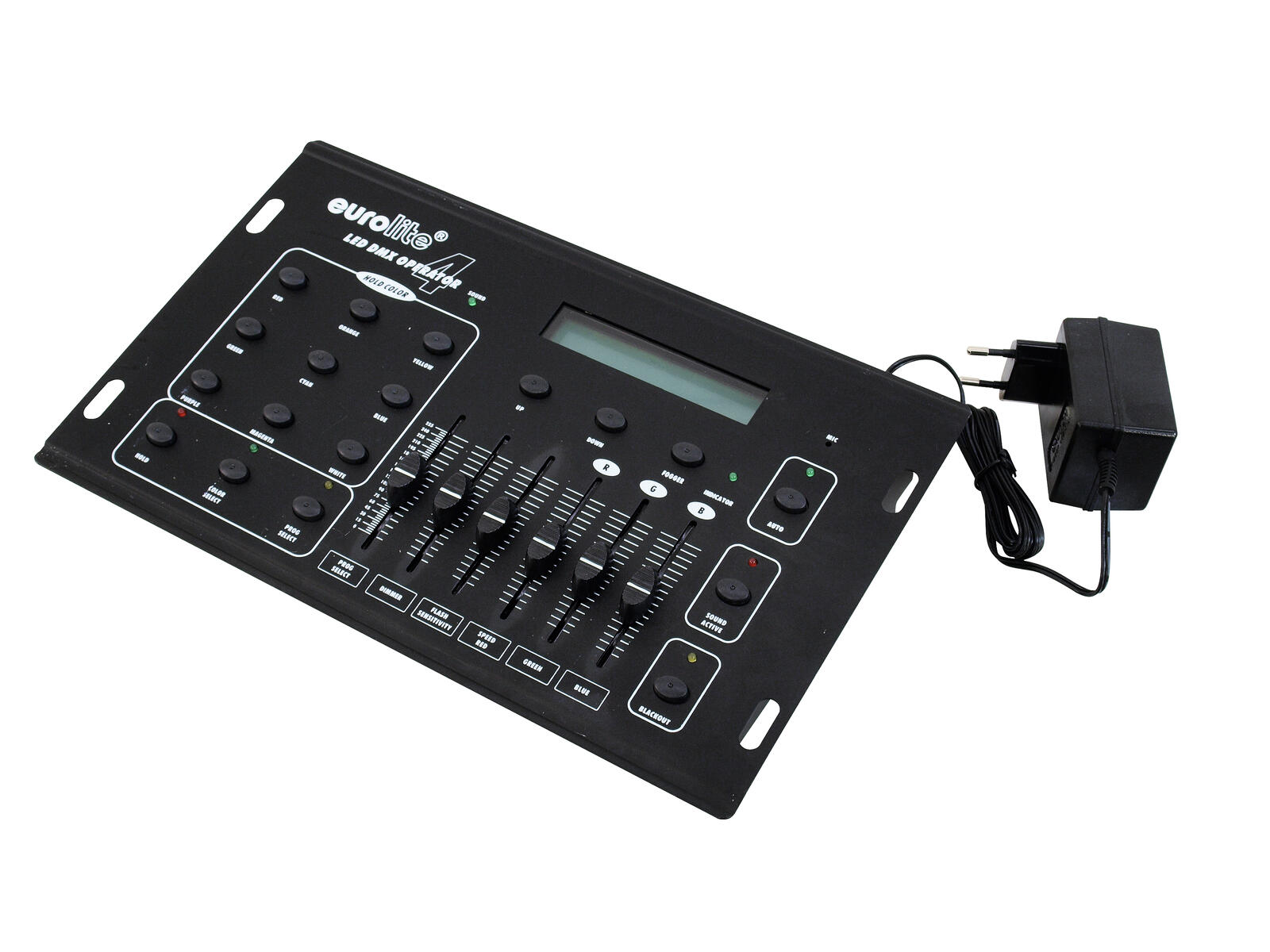

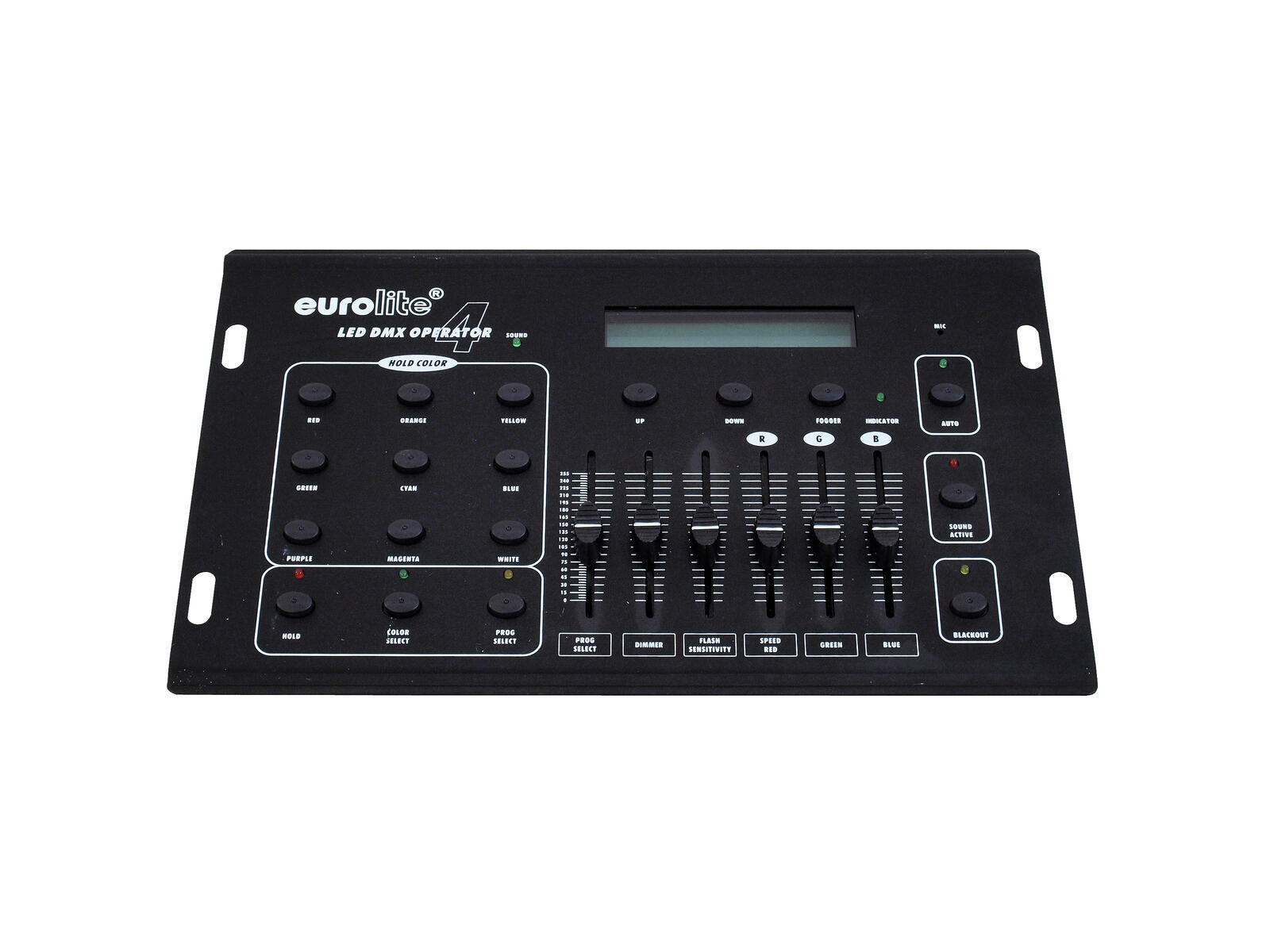

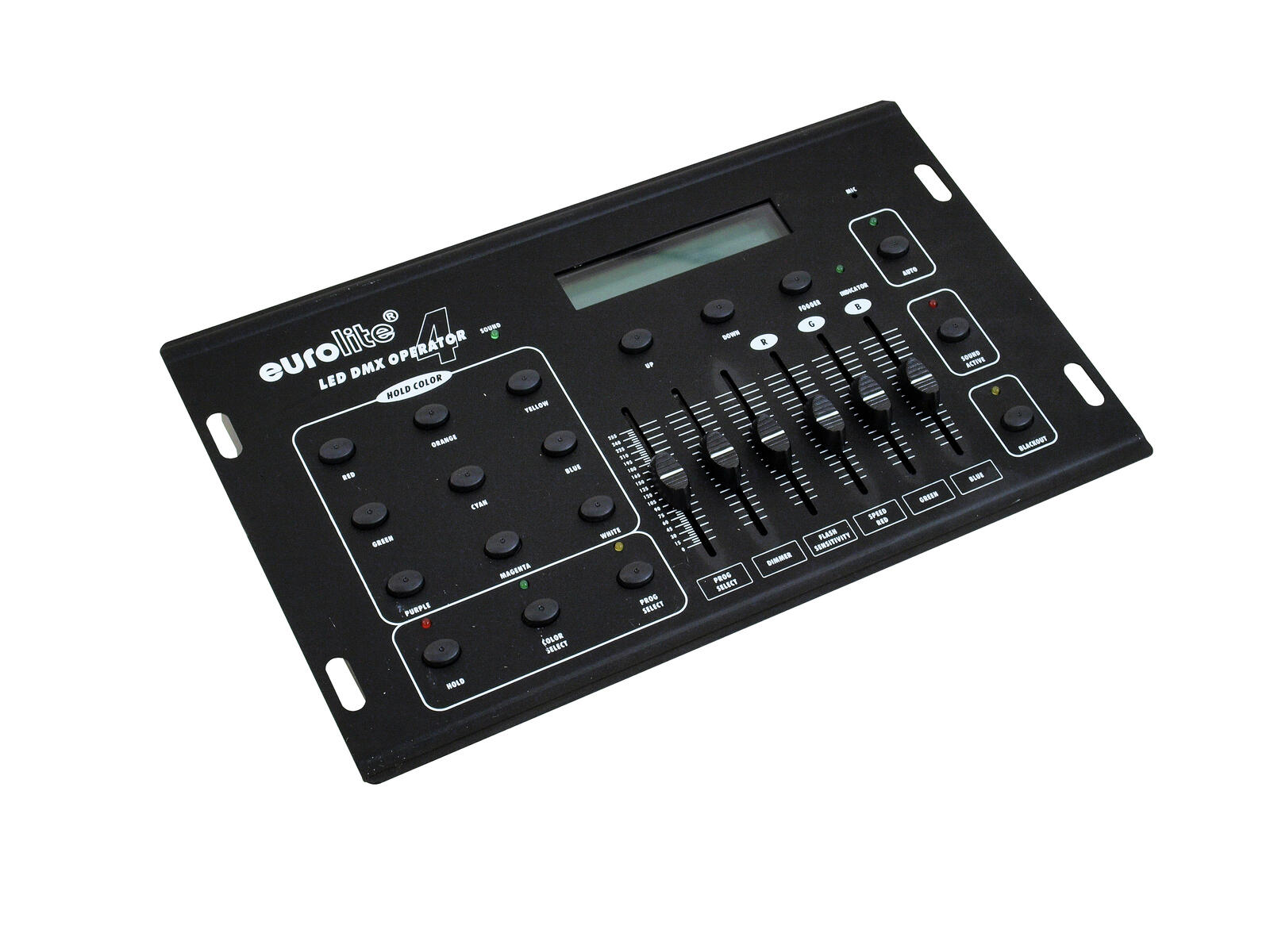

EUROLITE DMX LED Operator 4
   Downloads  Downloads




The easy way...
  The EUROLITE DMX LED Operator 4 is a DMX controller especially designed for the EUROLITE LED spots and LED effects with 5 DMX channels plus KLS series, LED BAR RGB and a smoke-machine.
  This controller features pre-programmed presets and colors, which can easily be displayed by pressing one button. Save your precious time for programming the individual DMX channels in order to display this color or that color.

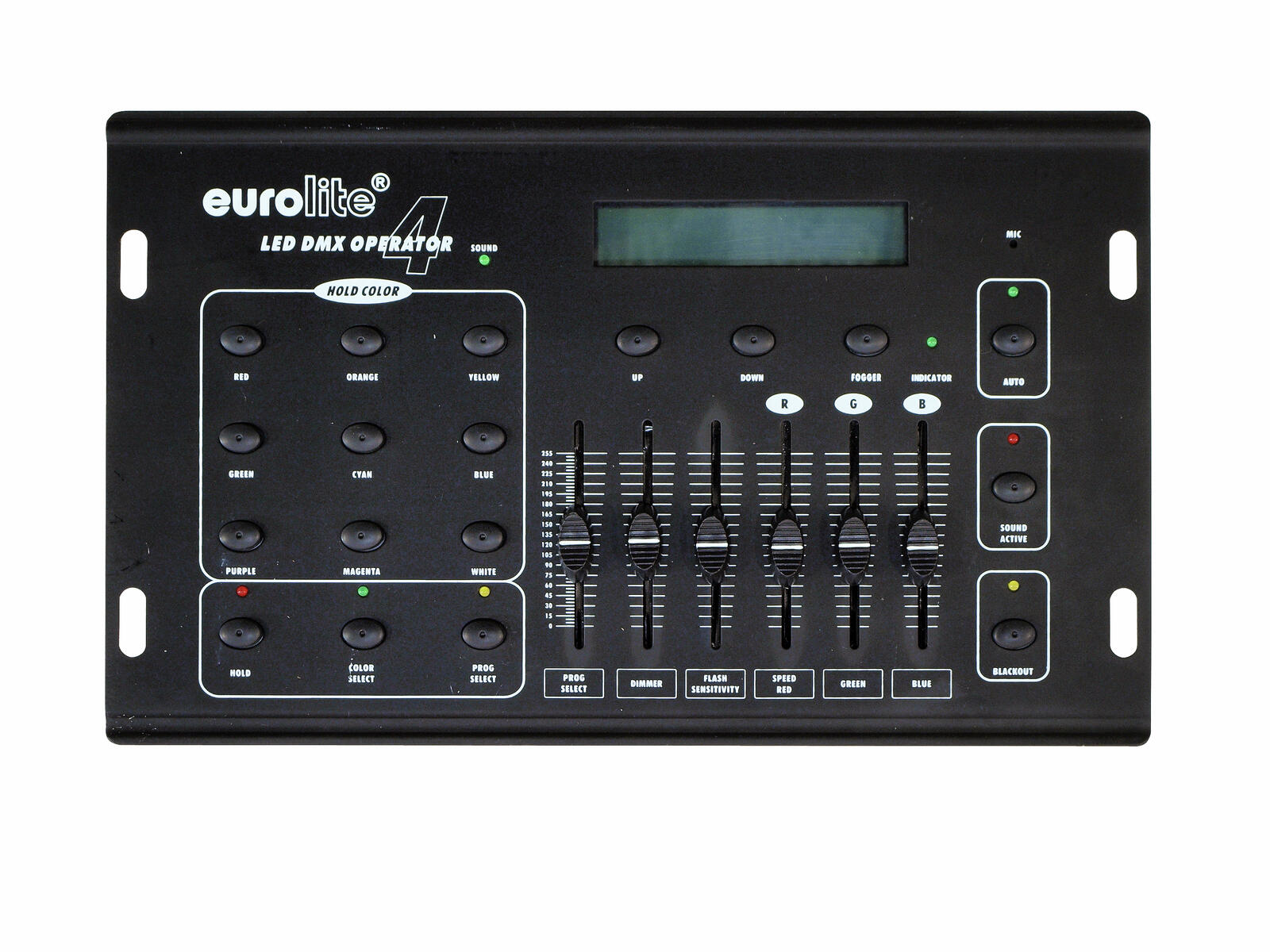

Compact DMX controller for easy application

  • 50 control channels only suitable for matching LED effects
  • 4 LED parcans can be controlled individually
  • Select color mode for choosing single colors
  • 11 internal programs
  • Auto mode for running all programs
  • Sound-control via built-in microphone or RCA input
  • Pause function
  • Blackout function
  • LCD and control LEDs display current operating mode
  • Program select fader for selecting the internal programs
  • Speed fader for adjusting the program speed
  • Sensitivity fader for adjusting the flash frequency
  • Additional fogger button for direct control of a DMX smoke machine (CH-49/50)
  • Designed for standing operation, optional installation is customer's choice
  • Power supply via enclosed power unit

Power supply:230 V AC, 50 Hz ~,
 via 9-12 V DC, 300 mA power unit included in the delivery
Power consumption:3.6 W
Number of control channels:50
Sound-control:via built-in microphone or RCA-input

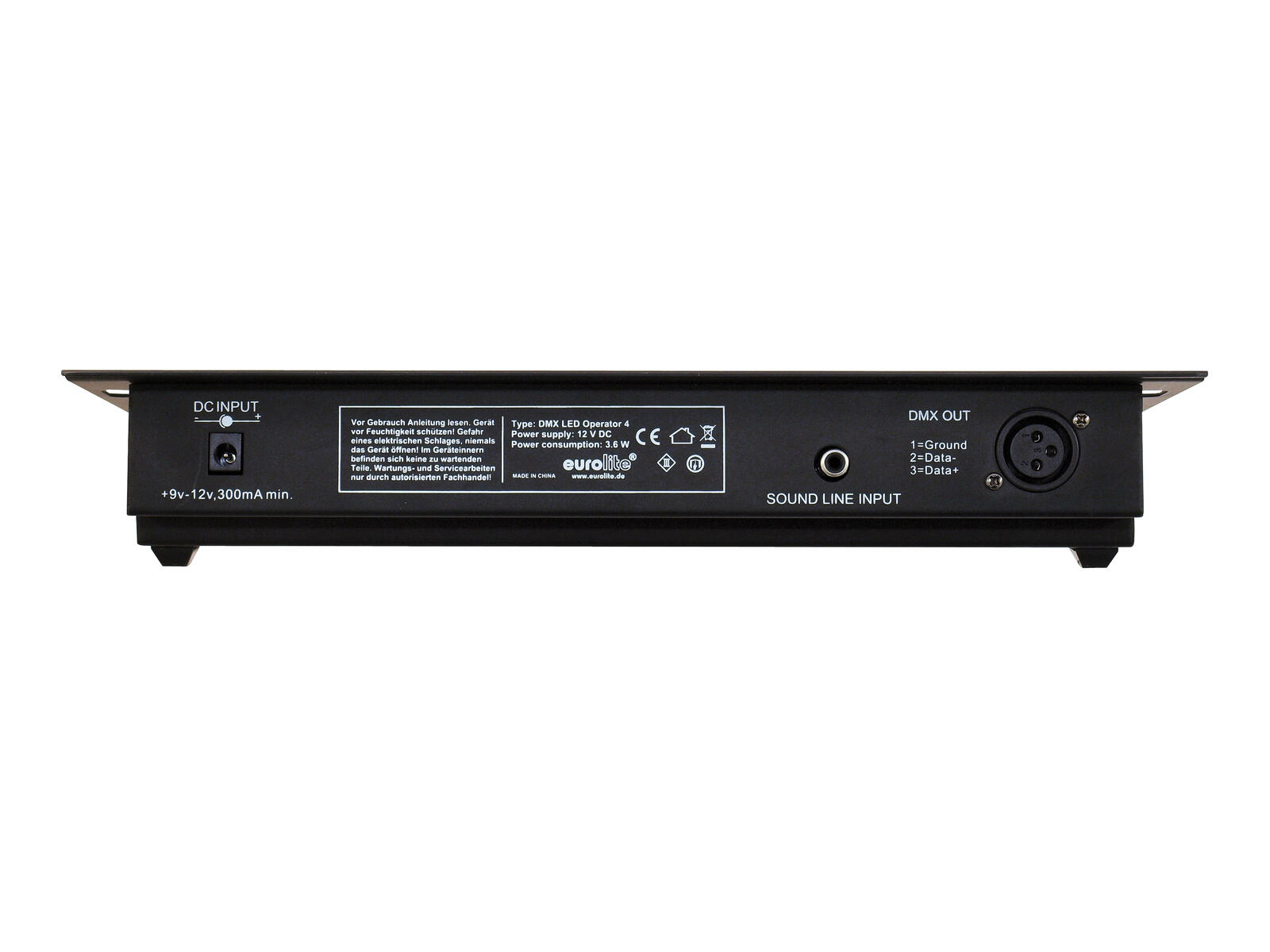

DMX512 output:3-pin XLR connector
Dimensions (LxWxH):320 x 190 x 60 mm
Weight:1.4 kg


online, buy cheap,
Delivery time 3-4 business days after payment
